Categories
Civil Engineering Sector Products

Non Woven Geotextile FP

Fabriflex FP is manufactured from randomly laid polymeric fibres needle-punched together to form a geotextile sheet. Nonwoven geotextile has high mechanical robustness and excellent filter performance, they are typically used for separation and filtration in applications such as civil, hydraulic, containment, etc. A unique characteristic of needle-punched geotextile is the high elongation, allowing great conformance of the material towards deformation.

FabriFlex FP produced using high quality fibres ensure superior resistance against chemical degradation. The geotextile is UV stabilised to prevent rapid degradation before soil cover. The material comes in roll form is easy to work with, requiring minimal machineries and labours.

Categories
Civil Engineering Sector Products

High Strength Woven Geotextile HWW

FabriFlex HW is a type of woven geotextile manufactured from high tenacity polyester yarns with superior tensile performance. It is commonly used for reinforcement for soil structures (i.e., embankments, slopes, etc.). It is also used in piled embankment to improve the system by replacing concrete slab or reducing pile cap size.

FabriFlex HW, high strength woven geotextile is able to achieve but not limited to 1,000 kN/m. High quality yarns are used to manufacture the material, ensuring excellent tensile strength mobilisation at low elongation, excellent long-term performance against creep reduction, installation damage, chemical and biological degradation.

Categories
Civil Engineering Sector Products

Geomembrane GM

FabriFlex GM HDPE geomembrane is manufactured by extruding polyethylene into a sheets of membrane. High density polyethylene (HDPE) geomembrane are widely used as barrier for various containment applications owing to its chemical stability and low permeability.

FabriFlex GM HDPE geomembrane has excellent chemical resistant. The material could withstand wide range of chemicals with minimal effects to its performance. Seams and overlaps on the geomembrane is further sealed by fusion or extrusion welding. HDPE geomembrane has long track records, proving its effectiveness in different conditions.

Categories
Civil Engineering Sector Products

Geogrid FG

FabriFlex FG is are a polymeric, mesh-like planar structures consisting of aperture openings in between a longitudinal and transverse ribs integrally connected at an angle. The high tenacity fibres used to form the ribs are further protected by a layer of protective polymeric coating.

FabriFlex FG comes in a large range of strength for different applications. Geogrids are commonly used as reinforcement for different application from road base stabilisation to reinforcement for wall and slope. Their large apertures are ideal for granular fill, restraining lateral movement of the fill material by mean of interlocking effect.

Categories
Civil Engineering Sector Products

Geocomposite Geotextile GC

FabriFlex GC represents the composite group of materials formed by combining more than one type of synthetic materials. It represents material such as geocomposite drainage net for drainage application, composite nonwoven for elevated filter or outdoor performance or even composite geogrid to enhance separation.

Composite materials are manufactured to fulfil certain demand, be it site condition or a special requirements for the project. The most commonly used composite material is geocomposite drainage nets to facilitates in-plane flow. This materials are used to replace natural drainage material for cost effectiveness and better technical performance.

Categories
Civil Engineering Sector Products

Geosynthetics Clay Liner GCL

Geosynthetic clay liner (GCL) is a thin and durable, self-healing modern hydraulic barrier used for containment. The factory controlled composites material is made of high swelling sodium bentonite, needle-punched in between two geotextiles. Low hydraulic conductivity of sodium bentonite effectively contains liquid from migrating outward. The needle punching process reinforce the GCL and increases its internal shear strength, ensuring the performance on steeper and longer slope. It is also dimensionally more stable, better resistance to shrinkage.

FabriFlex B, geosynthetic clay liners are used in various containment applications, a perfect alternative to compacted clay liner with equivalent and better performance. Installation is made simple by just rolling and overlapping the material. Contributed by various advantages, GCL has a lesser carbon footprint.

Categories
Civil Engineering Sector Products

Flexible Rock Bag FRB

Flexible Rock Bags are highly durable net-bag that could accommodate a variety of fill choices from gravel, stones and crushed concrete. The net is made from highly UV stablised polyester yarn and tested against abrasion, eliminating possible corrosion problems that arise from structures made from steel and abrasion from sand particles.

Contributed from its flexibility, FabriFlex FRB can conform to various challenging terrain yet able to maintain a steeper slope angle as compared to riprap owing to the restrain of the net structure. When deployed as a hydraulic structure (i.e., revetment, scour protection, etc.), the system can achieve similar performance as riprap constructed using a flexible rock bag with smaller stone size.

Categories
Civil Engineering Sector Products

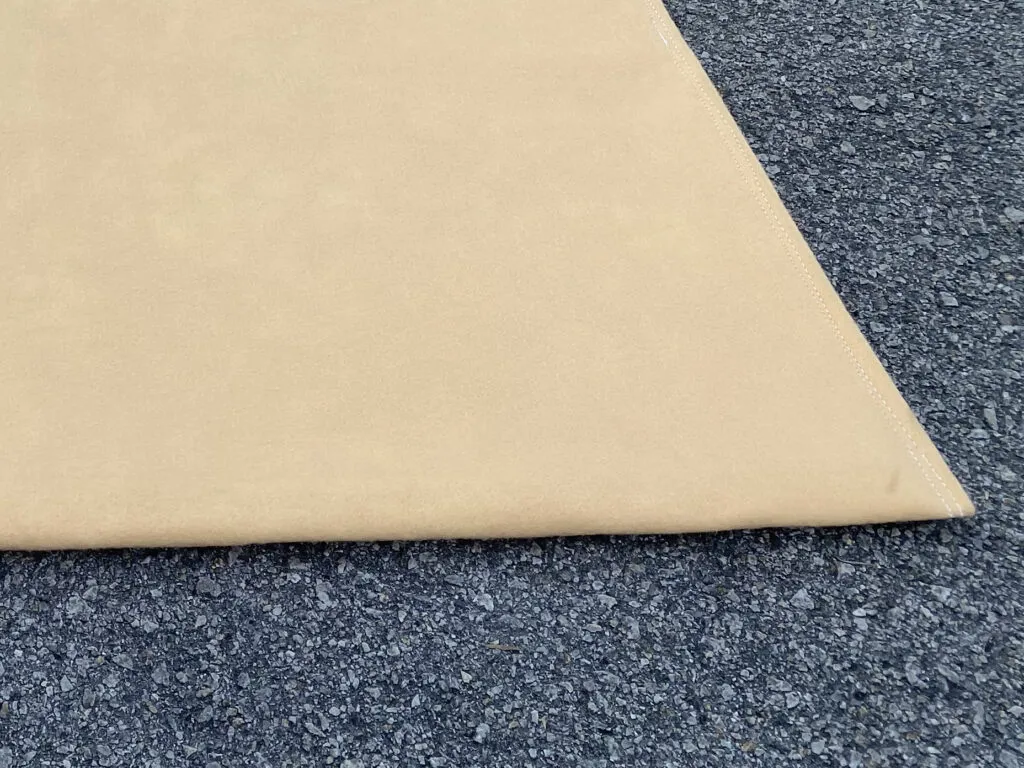

X-seam Bag XB

Seams are traditionally the weakest component in geotextile bag. High quality yarns that comes with a cost or special installation configuration is required to ensure the seam is well protected. To solve these problems, FabriFlex X-Seam is a type of geotextile bag manufactured using special technique to conceal the seam.

FabriFlex X-Seam can be manufactured using different types of geotextile,  ideal for various hydraulics applications. Without worrying on UV degradation and mechanical damages of the seam, the product usage is straightforward and easy to install.

Categories
Civil Engineering Sector Products

Silt Curtain SC

FabriFlex SC Silt Curtain are floating barrier specially manufactured to control turbidity in marine construction such as hydraulic sand filling and dredging. It prevents migration of fine soil particle and sediment into surrounding water environment, allowing the disturbed sediment within the contained area to settle. The system is easy to install and can be rapidly deployed.

Silt Curtain SC are highly customizable to meet client and site requirements. Different combination of pervious or impervious curtains and other components could be designed depending on the water depth, flow rate and other hydraulic actions.

Categories
Civil Engineering Sector Products

Concrete Mattress CM

Fabriflex Concrete Mattress CM is manufactured from two layers of engineered fabric filled with cement mortar and innovative concrete block technology. The material is lightweight and can be easily transported to remote areas for site filling. Flexibility given by the fabric allows the filled mortar and concrete block to conform to underlying soil. Underwater filling made possible by confining the filling in between the fabrics.

The material is mainly used for erosion control and pipeline protection. Depending on the hydraulic condition, different thicknesses of the mattress can be manufactured to suite the site requirements. Our Concrete Mattress CM comes in different forms, it can be manufactured as an impermeable layer which as as a barrier, permeable layer with filter points to allow water dissipation or vegetation friendly flexible mattress that could accommodate vegetation growth.

Targeted Solutions for Erosion and Infrastructure Protection

Fabriflex offers specialized concrete mattresses for robust riverbank erosion control, ensuring long-lasting stability and environmental safety.

Tailored for coastal defense, these mattresses combat erosion and preserve shorelines effectively.

Designed to protect structures from scouring, enhancing longevity and safety.

Ideal for protecting berthing areas against erosion and damage.

Ensure canal integrity with these durable concrete solutions.

Safeguard pipelines with specialized mattresses designed for optimal protection.
